TUBE CLEANING NOZZLE
Drilljetâ„¢
The DrillJetâ„¢ is a compact, high-durability tube cleaning tool that uses water-bearing technology to eliminate seals, bearings, and lubricants for low-maintenance operation. Designed for tight spaces like U-bend heat exchangers, it offers versatile nozzle configurations for both routine cleaning and powerful blockage removal.
COMING SOON! 40K Tube Cleaning NozzleÂ
TUBE CLEANING NOZZLE
Drilljetâ„¢
The DrillJetâ„¢ is a compact, high-durability tube cleaning tool that uses water-bearing technology to eliminate seals, bearings, and lubricants for low-maintenance operation. Designed for tight spaces like U-bend heat exchangers, it offers versatile nozzle configurations for both routine cleaning and powerful blockage removal.
COMING SOON! 40K Tube Cleaning NozzleÂ

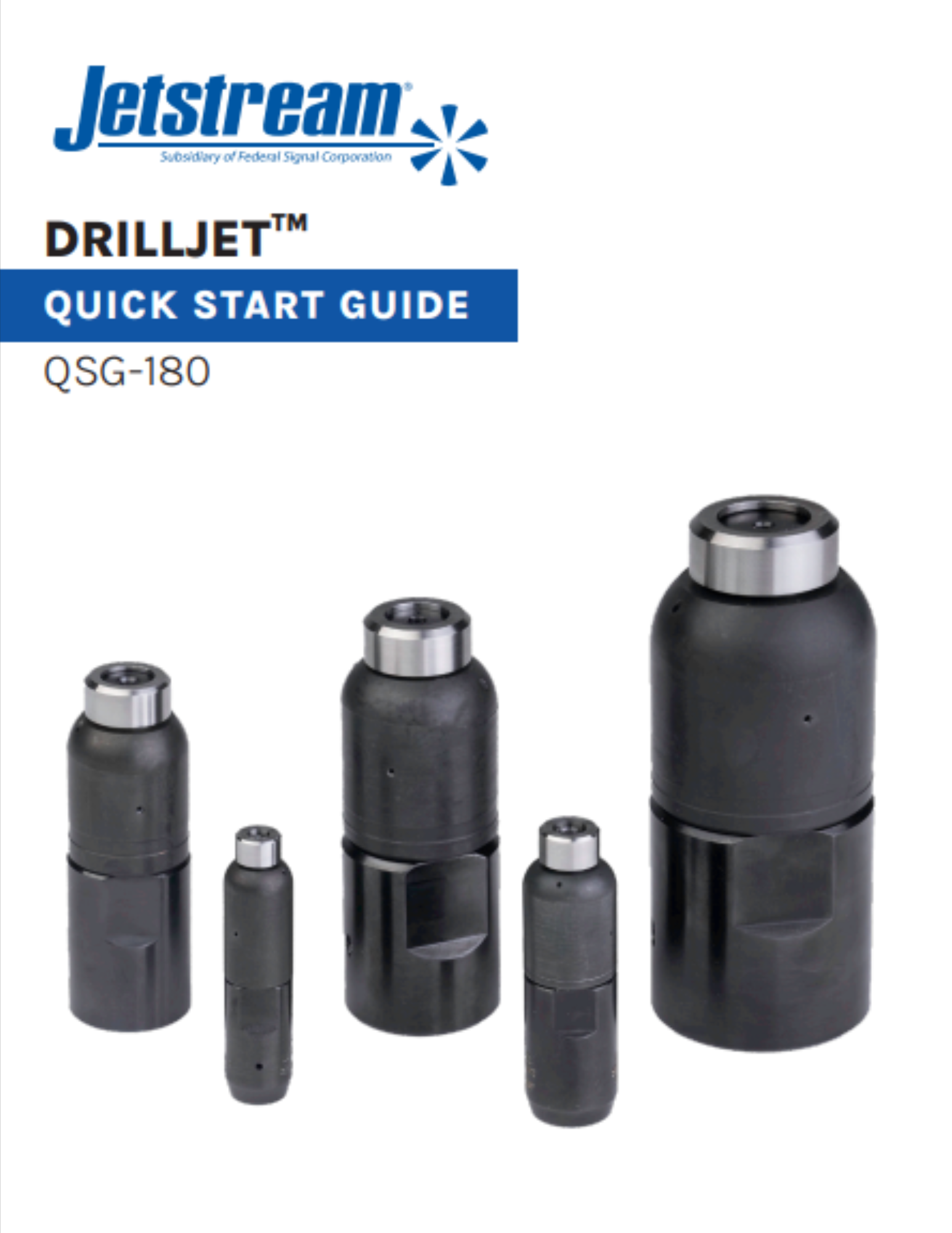

Documentation
Click to Open PDF
Features
- Most compact tube cleaning nozzle in the industry allowing for complete cleaning of U-Tube style heat exchangers.
- Front Cap prevents debris from slowing the rotation of nozzle so cleaning never stops.
- In 7-Jet configurations, the hard-hitting 0° nozzle unplugs even the toughest material.
- Designed for unplugging, cleaning, and polishing tubes found in heat exchangers and industrial tube bundles.
- Water bearing design – no bearings, seals, or lubricants to replace!
Specifications

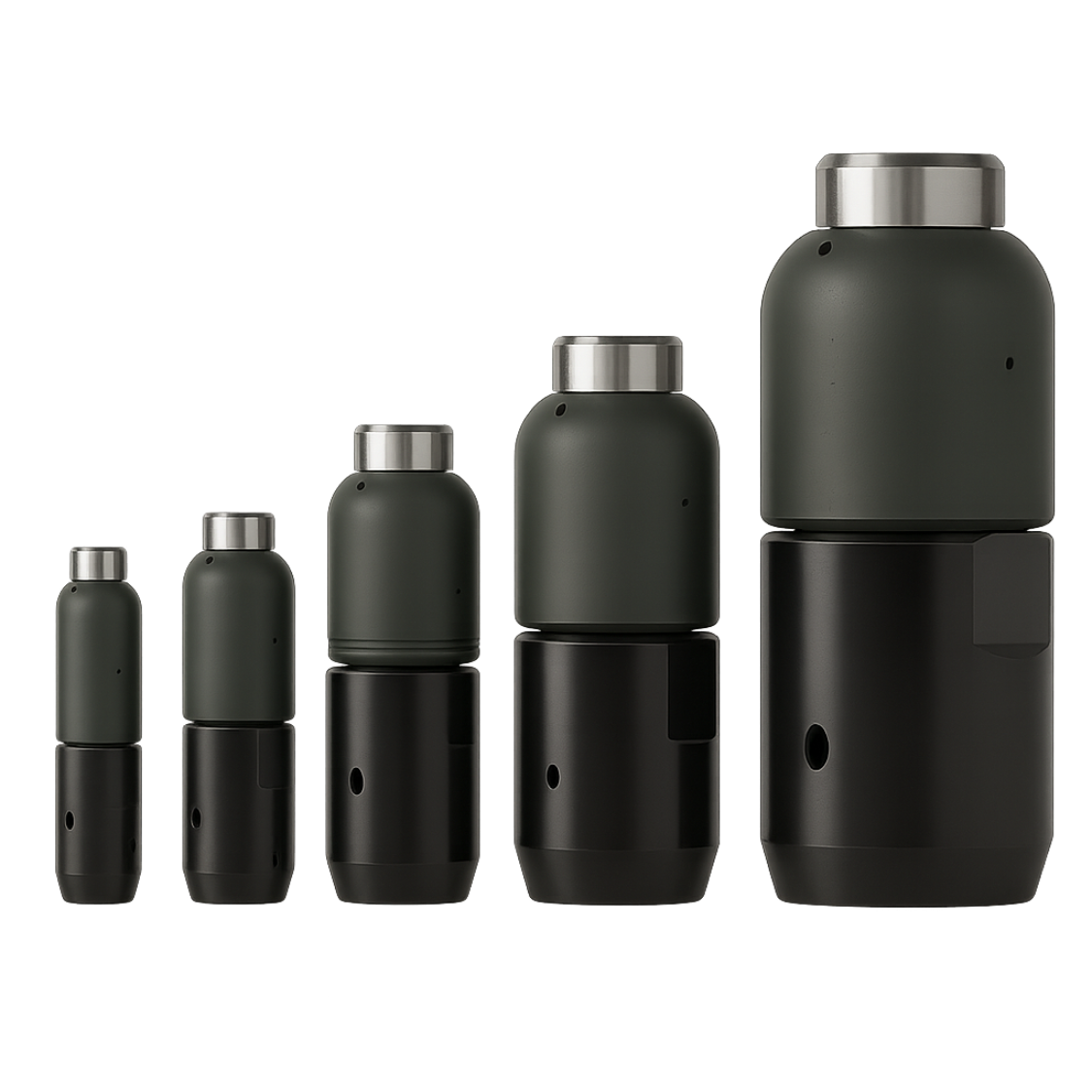

- Sizes available: 9.5 mm , 13 mm, 18mm, 24mm, and 33 mm.
- Industry standard inlets and various orifice configurations are available for working pressures up to 22,000 psi (1500 bar).
- Clean tubes as tight as 0.47 inches (12 mm) up to 2.40 inches (61 mm)
- 8 gpm (17 lpm) up to 47 gpm (178 lpm)
- As compact as 1.54″ overall length (9.5mm nozzles).

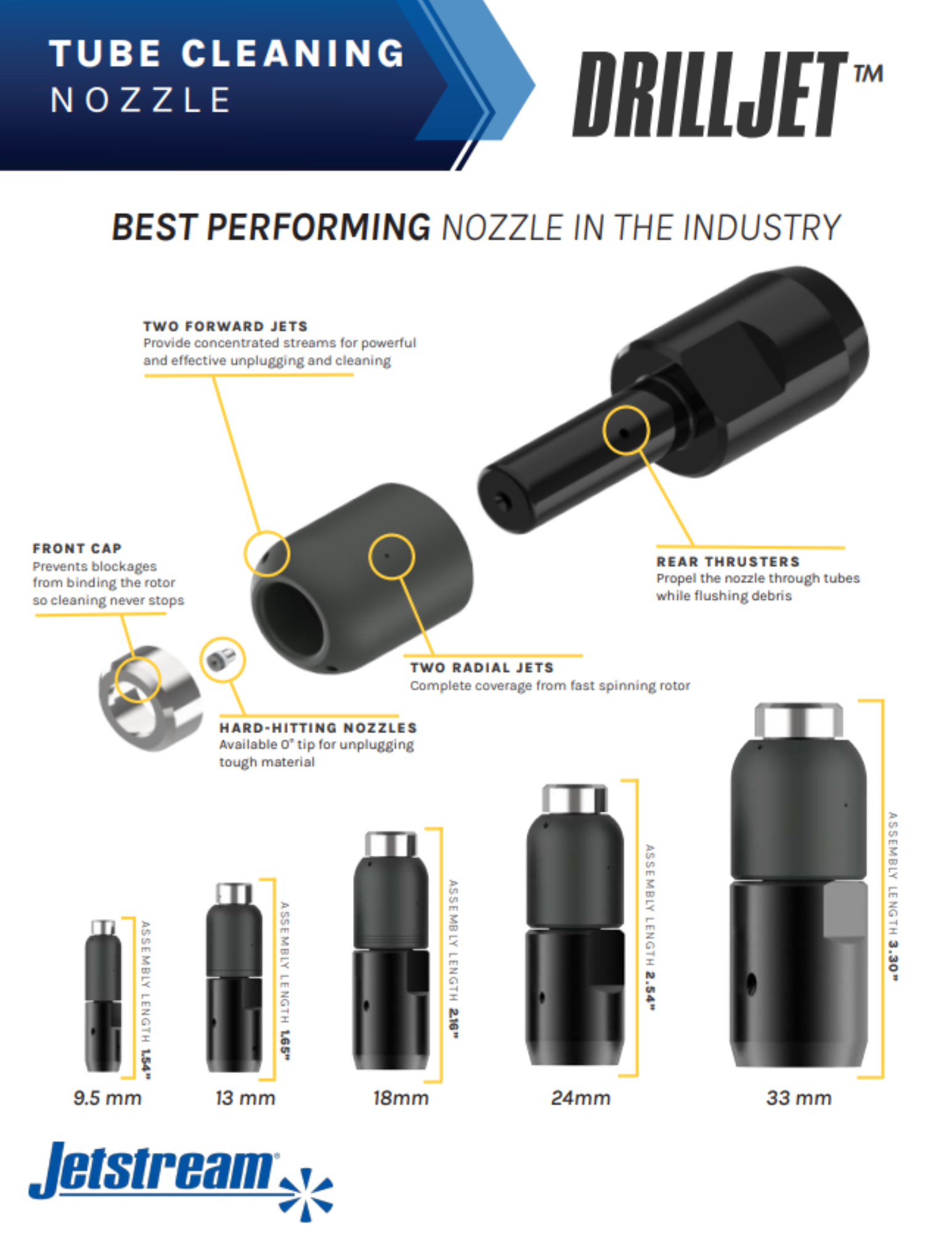

BEST PERFORMING NOZZLE IN THE INDUSTRY

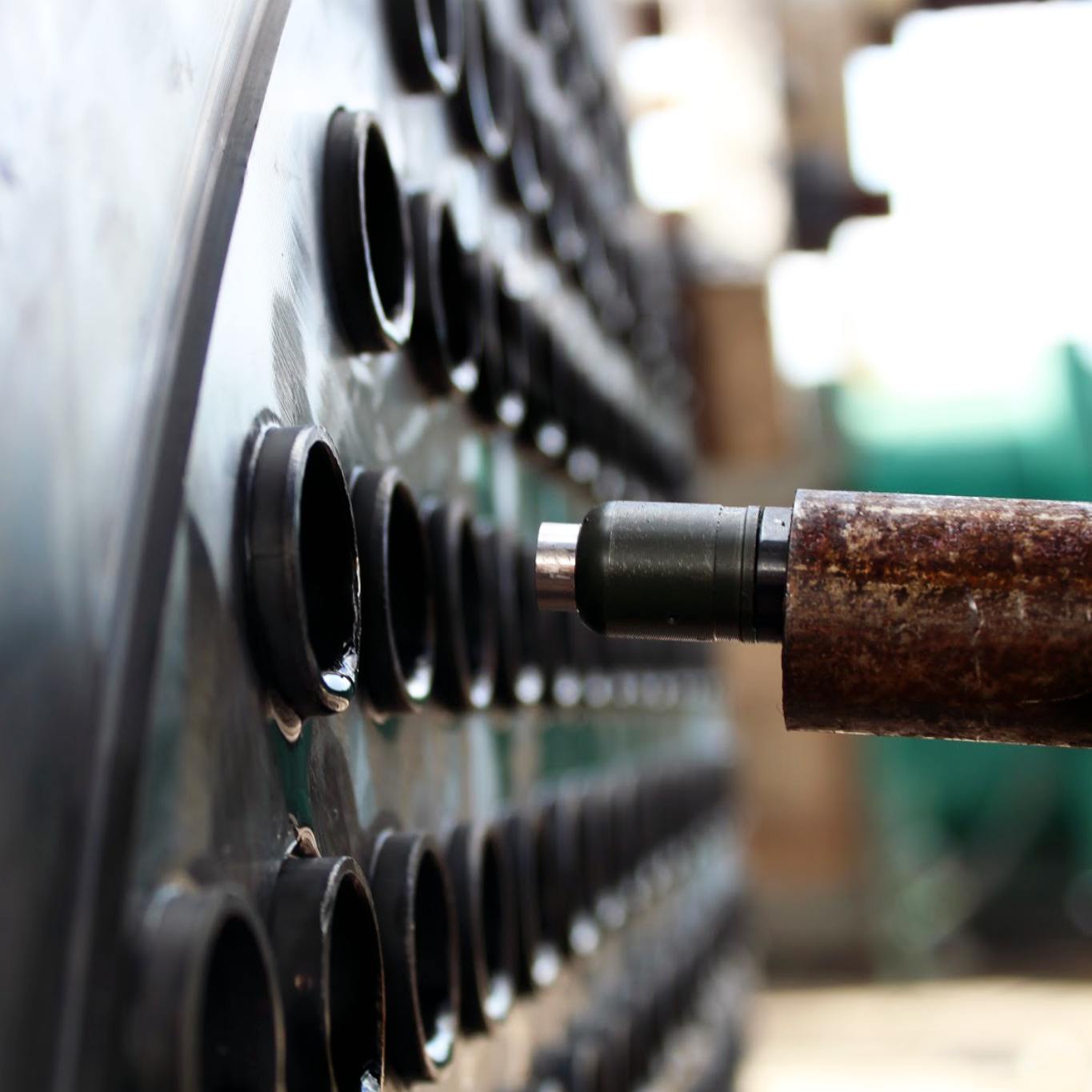

The DrillJetâ„¢ utilizes Jetstream DNA water-bearing technology to eliminate any need for seals, bearings, or lubricants, creating a bulletproof tube cleaning tool. DrillJetâ„¢ nozzles are assembled from just three components: the nozzle body, rotor, and retention cap. The compact design enables these nozzles to navigate and clean tubes in U-Bend style heat exchangers, a task nearly impossible for mechanical cleaning methods.
Use a universal 6-Jet configuration for standard cleaning and polishing or a powerful unplugging 7-Jet configuration for blasting through tough build-ups and blockages with ease. Dial in the most efficient cycle time for heat exchanger cleaning and other small-diameter tube cleaning applications with a wide selection of flow rates and sizes.
Browse Our Signature Tooling Line
ROTOMAG
Pipe & Tank Cleaning
J FORCE
H3ORBITER
Tank Cleaning
DRILLJET
Tube Cleaning
MAGJET
Surface Preparation

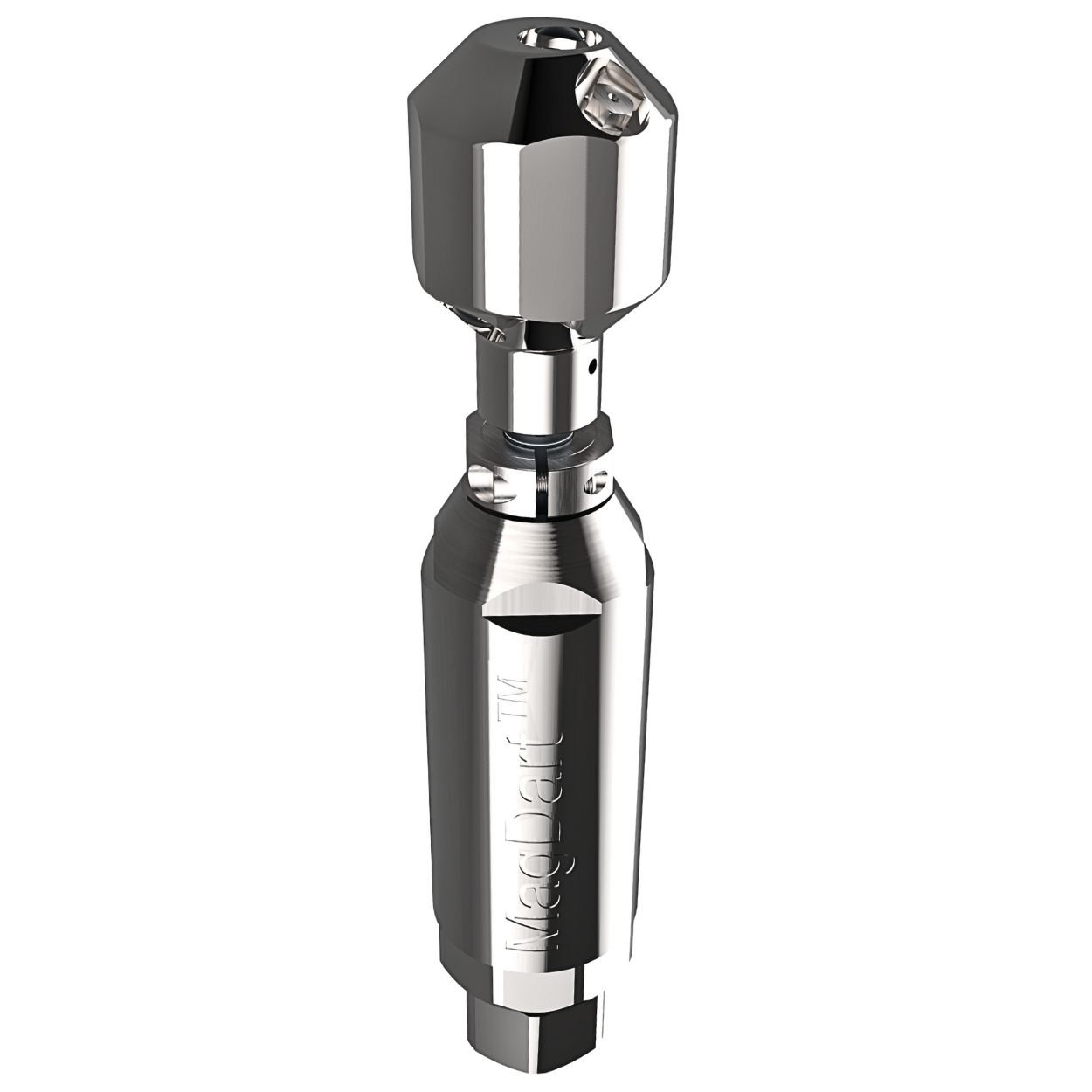

MAGDART
Pipe Cleaning

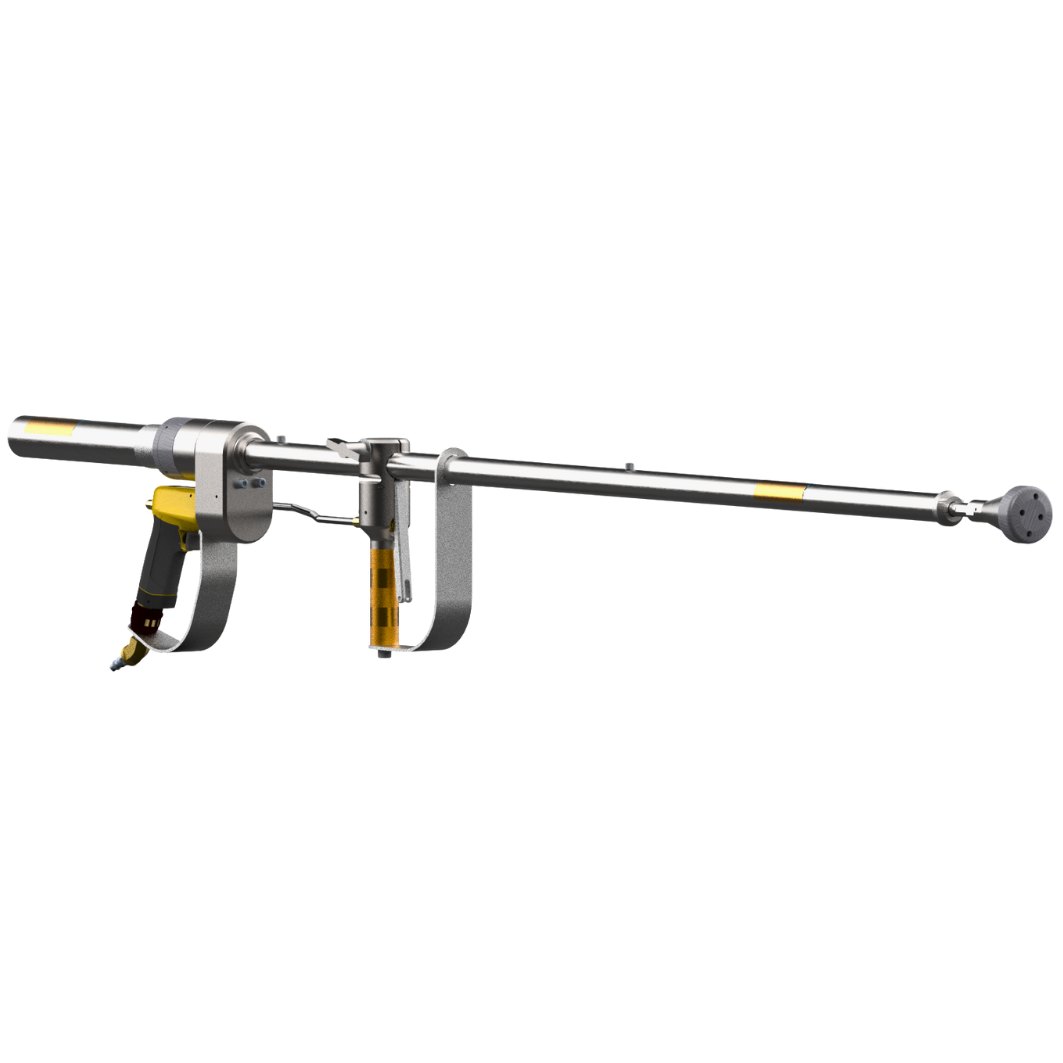

TORNADO GUN
