VESSEL CLEANING NOZZLE
H3Orbiterâ„¢

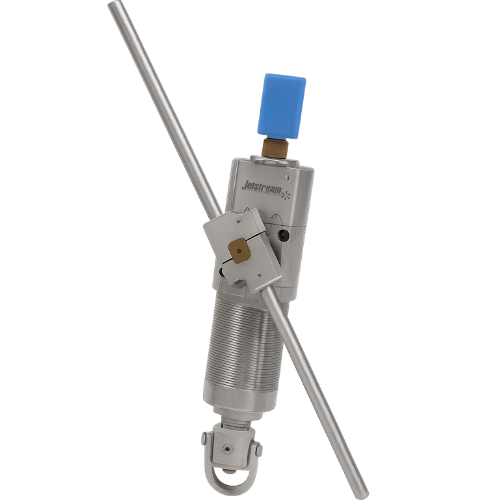

The H3Orbiterâ„¢ is a 3D waterblast tool designed to clean tanks, rail cars, totes, vessels, autoclaves, ducts, and reactor interiors with working pressures up to 22,000PSI and flows from 10 to 80 gpm. Unlike single-axis rotating tools, it operates on two axes to deliver powerful, comprehensive cleaning coverage across every surface. With adjustable rotation, fast cleaning cycles, and versatile attachments, the H3Orbiterâ„¢ provides a reliable and precise solution for demanding industrial cleaning applications.
COMING SOON! High Flow H3Orbiter capable of flows up to 200gpm.Â

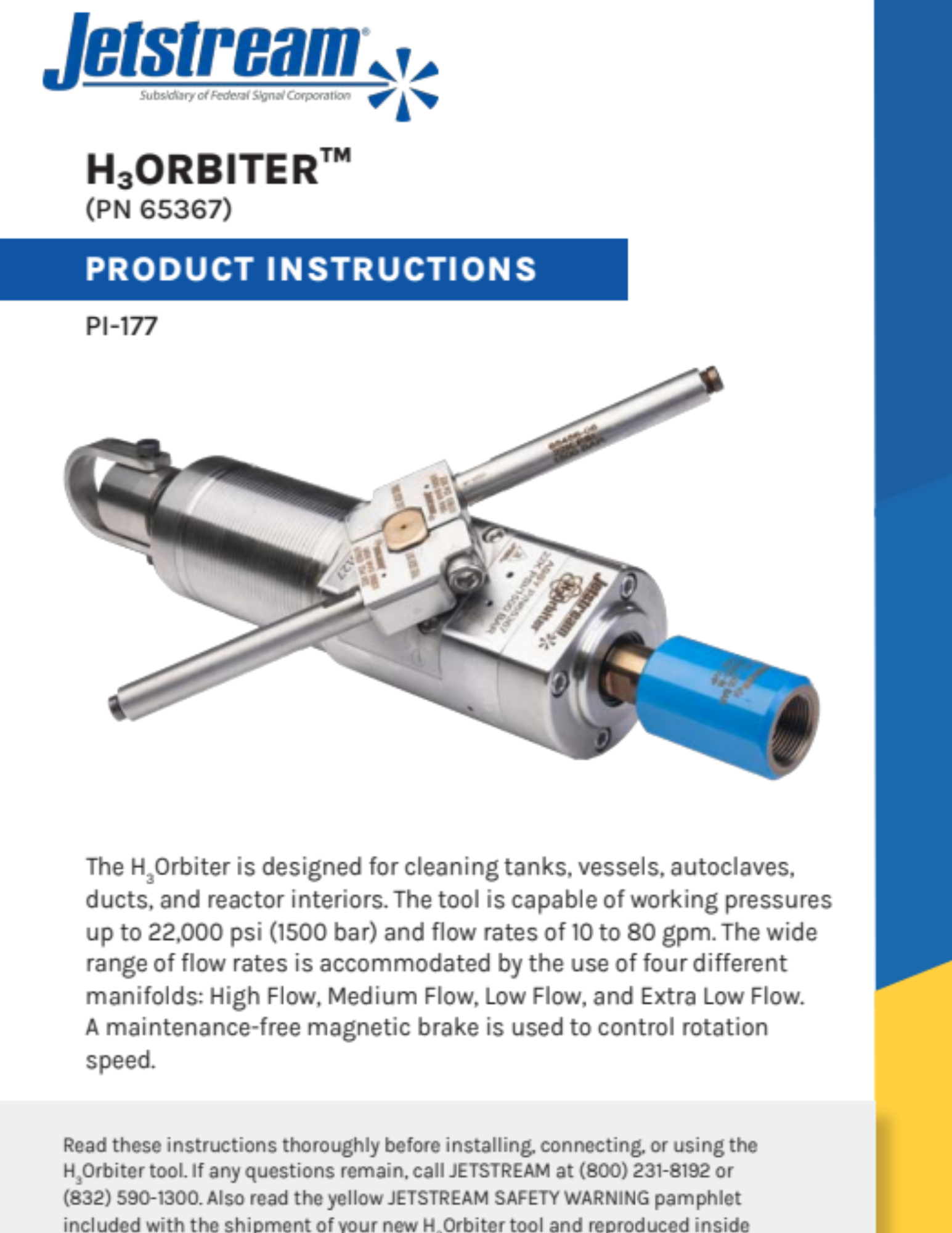

Documentation
Click to Open PDF

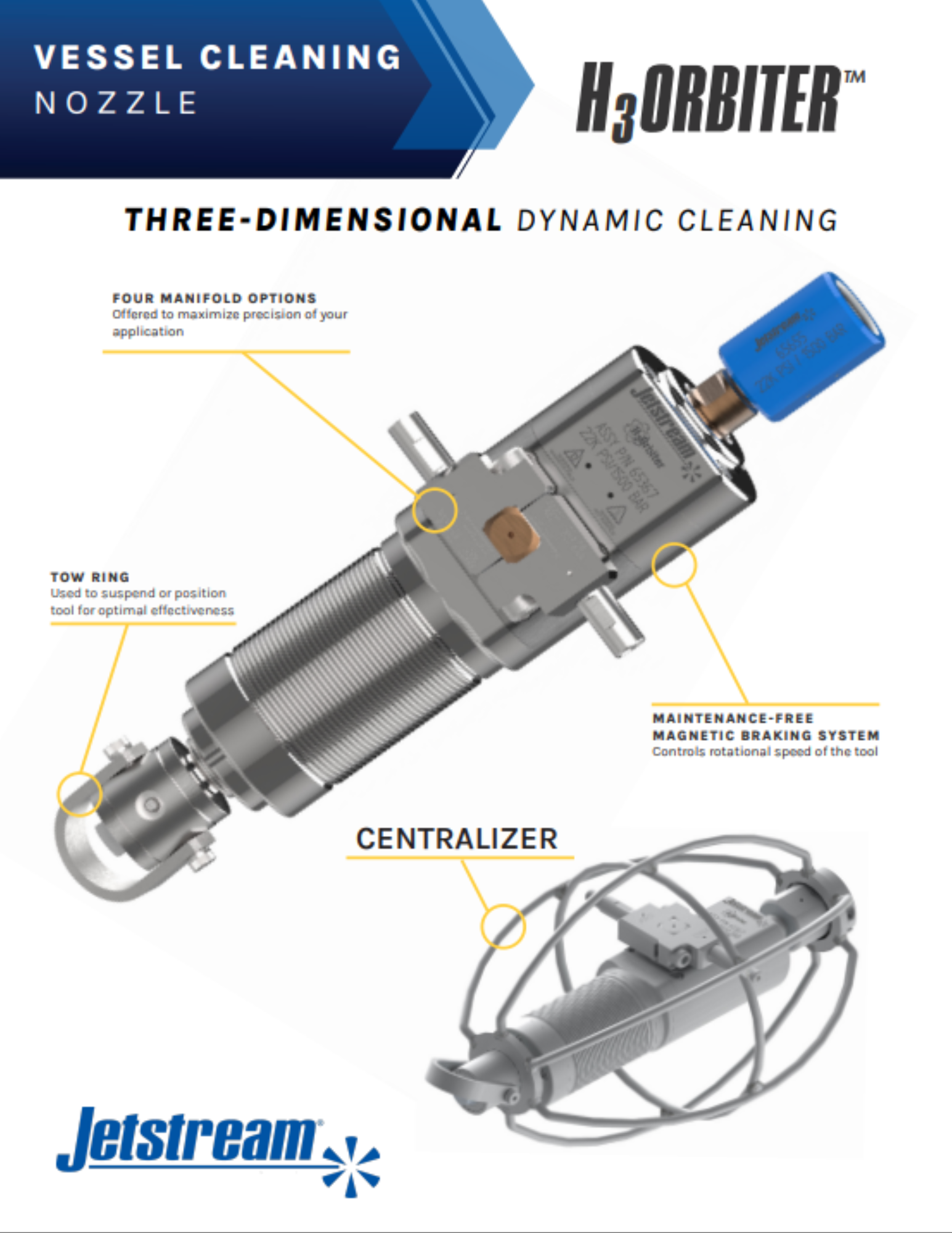

Features
- Utilizes multiple different manifolds allowing the operator to fine tune for flow and pressures from 10 GPM to 80 GPM and 8,000 PSI to 22,000 PSI.
- Maintenance free magnetic braking system.
- Narrow overall diameter for tight hatch access.
- Easy access grease zerks for simple lubrication maintenance.
- Wide range of accessories including cage centralizers, extensions, tow rings and the Jetstream Versaboomâ„¢.
- 3D cleaning and 2D cleaning capable.
Specifications
- 1-1/8″ ORS Male inlet with adapters for industry standard connections.
- Rotational speed 8 to 50 rpm.
- Tool diameter 4 inches (100 mm).
- Tool weight 35 lbs (16 kg).
- Max flow 80 gpm (307 lpm).
- Max operating pressure 22,000 psi (1500 bar).
- Accepts HHTC Series carbide, HHD Series synthetic diamond, or JS4 Series nozzles
- Adjustable Speed Control
THREE DIMENSIONAL
DYNAMIC CLEANING

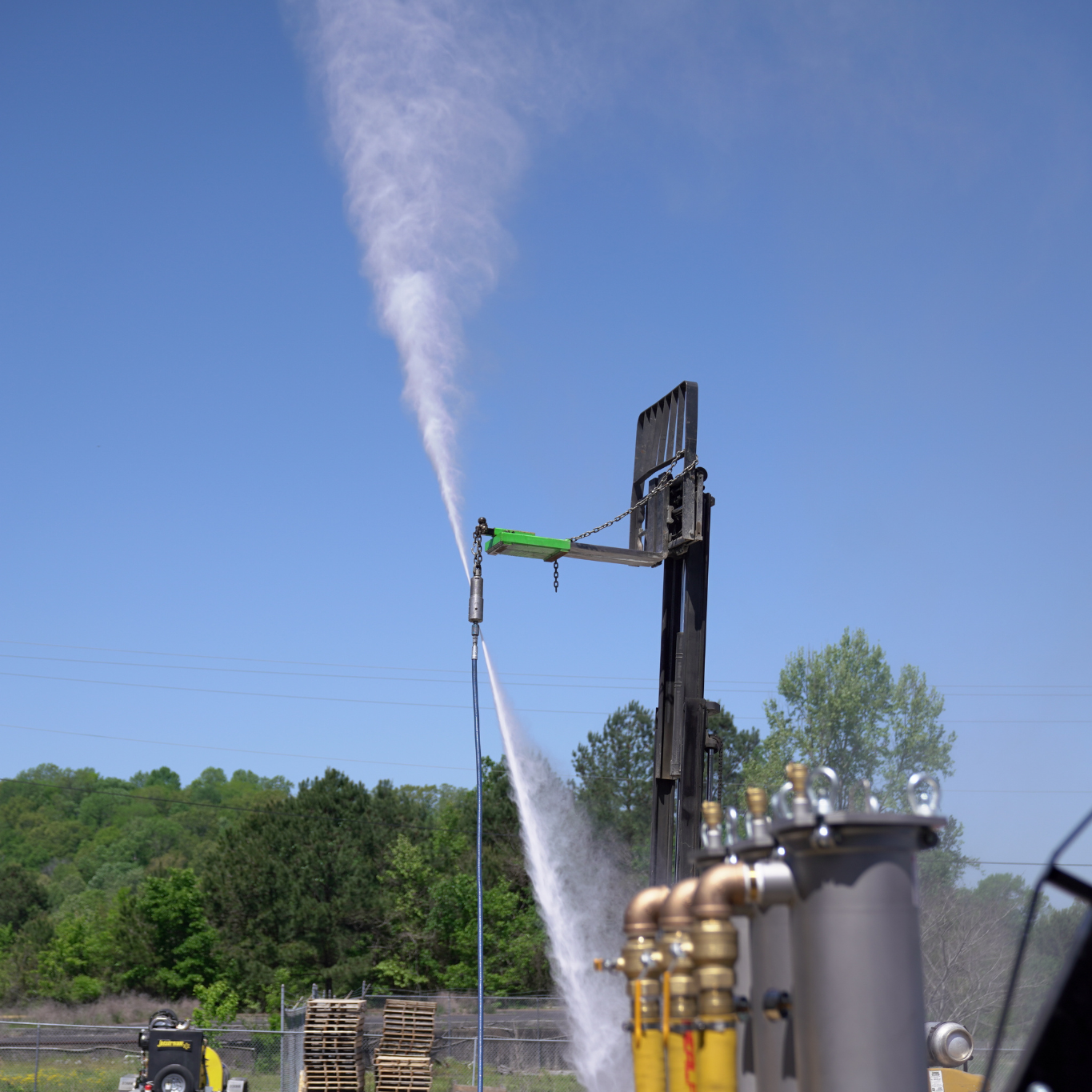

The H3Orbiterâ„¢ is a 3D waterblast tool designed to clean tanks, rail cars, totes, vessels, autoclaves, ducts, and reactor interiors with working pressures up to 22,000PSI and flows from 10 to 80 gpm. Many rotating tools offer only a single axis of rotation, while the H3Orbiterâ„¢ operates on two axis to deliver powerful waterblast jets to every surface within a vessel.
An easily adjustable, maintenance free magnetic braking system controls the rotation speed along with a selection manifolds for different flow ranges. The complete H3Orbiter cleaning cycle varies from about 4 to 30 minutes depending on rotation speed, which is set by the pressure, flow rate, nozzle diameter, manifold choice, and brake settings. When used in large vessels, extension arms up to 36 inches long can be used to keep the rotating nozzle jets near the surface for maximum cleaning efficiency.
Using an optional Kick Plate and centralizer cage attachment the H3Orbiter™ is also capable of pipe cleaning through self generated forward movement with each 180° rotation. With a narrow overall diameter for use in small hatches, the Jetstream H3Orbiter™ conquers industrial cleaning challenges with speed and accuracy you can depend on.
