PIPE AND VESSEL CLEANING
ROTOMAG™ X22 & HIGH FLOW ROTOMAG

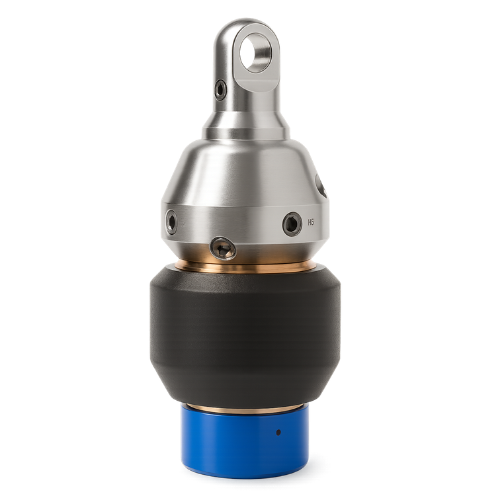

The RotoMag X22 and RotoMag X22N are self-powered rotating tools designed for cleaning stacks, sewer
lines, drains, tanks, online boilers, and other large diameter pipes.

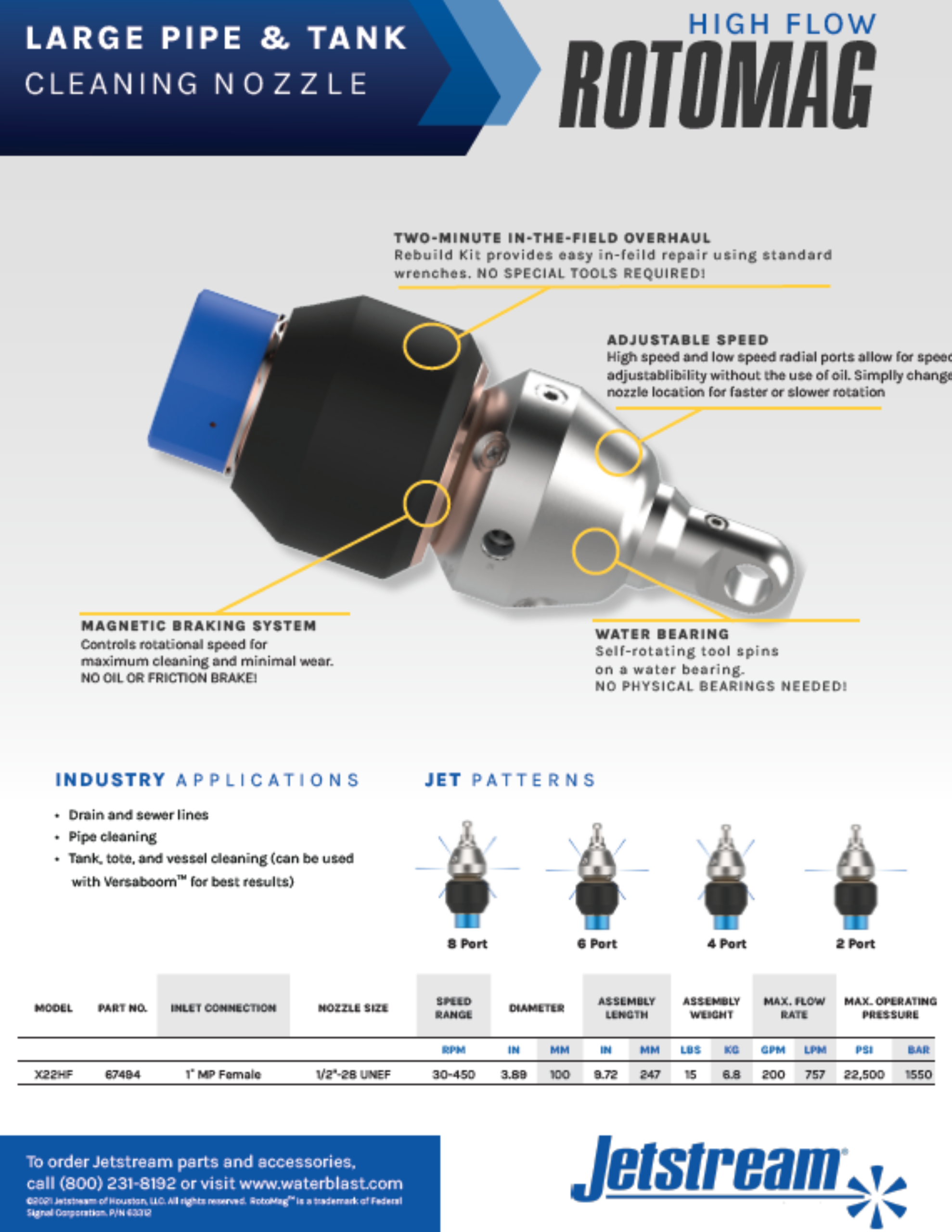

The High Flow RotoMag X22 builds on this proven design, offering up to 2.5 times greater flow rate while maintaining the same innovative features, making it ideal for cleaning stacks, sewer lines, drains, tanks, online boilers, and other large-diameter pipes and vessels.

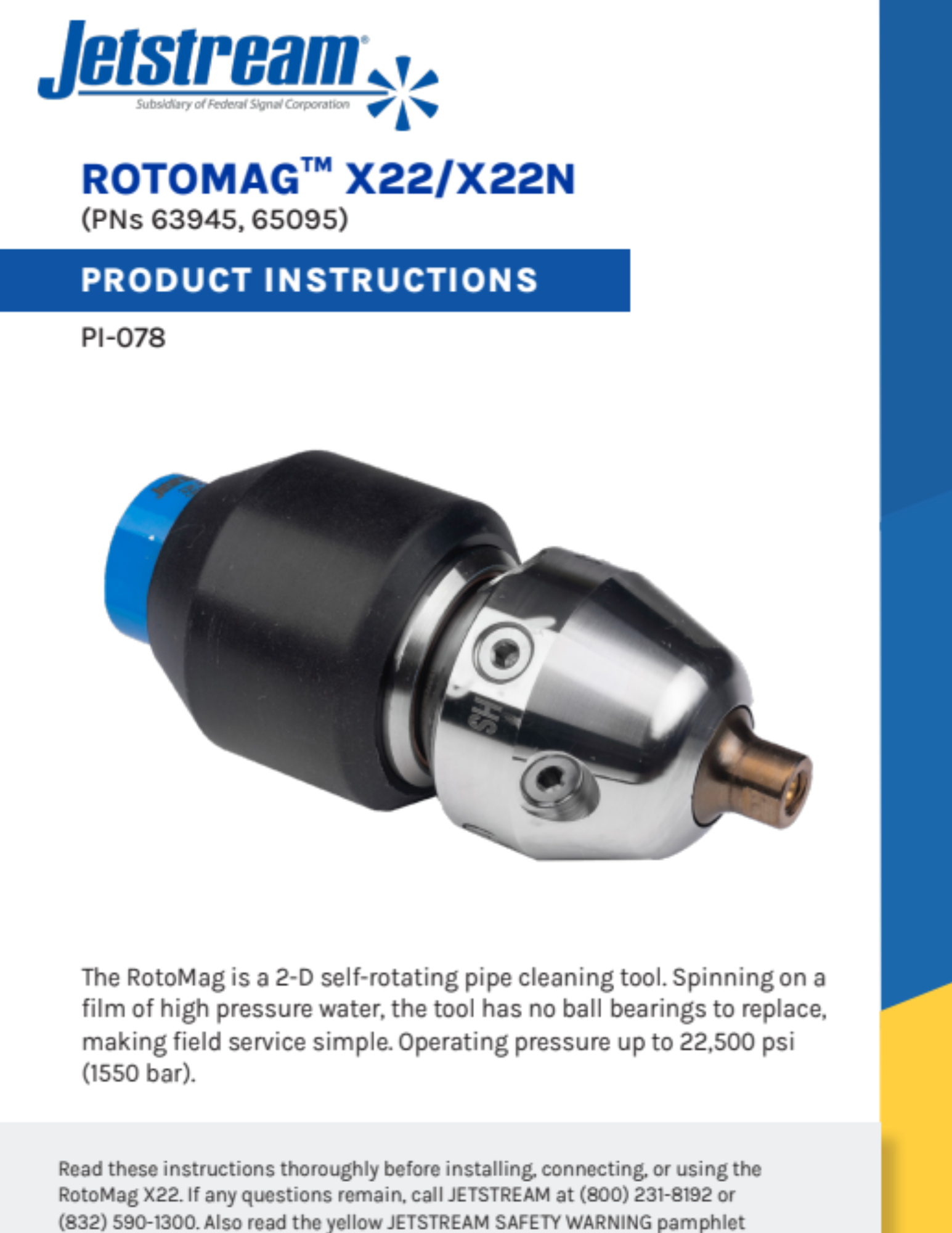

Documentation
Click to Open PDF
Features
- Maintenance free magnetic braking system controls rotational speed.

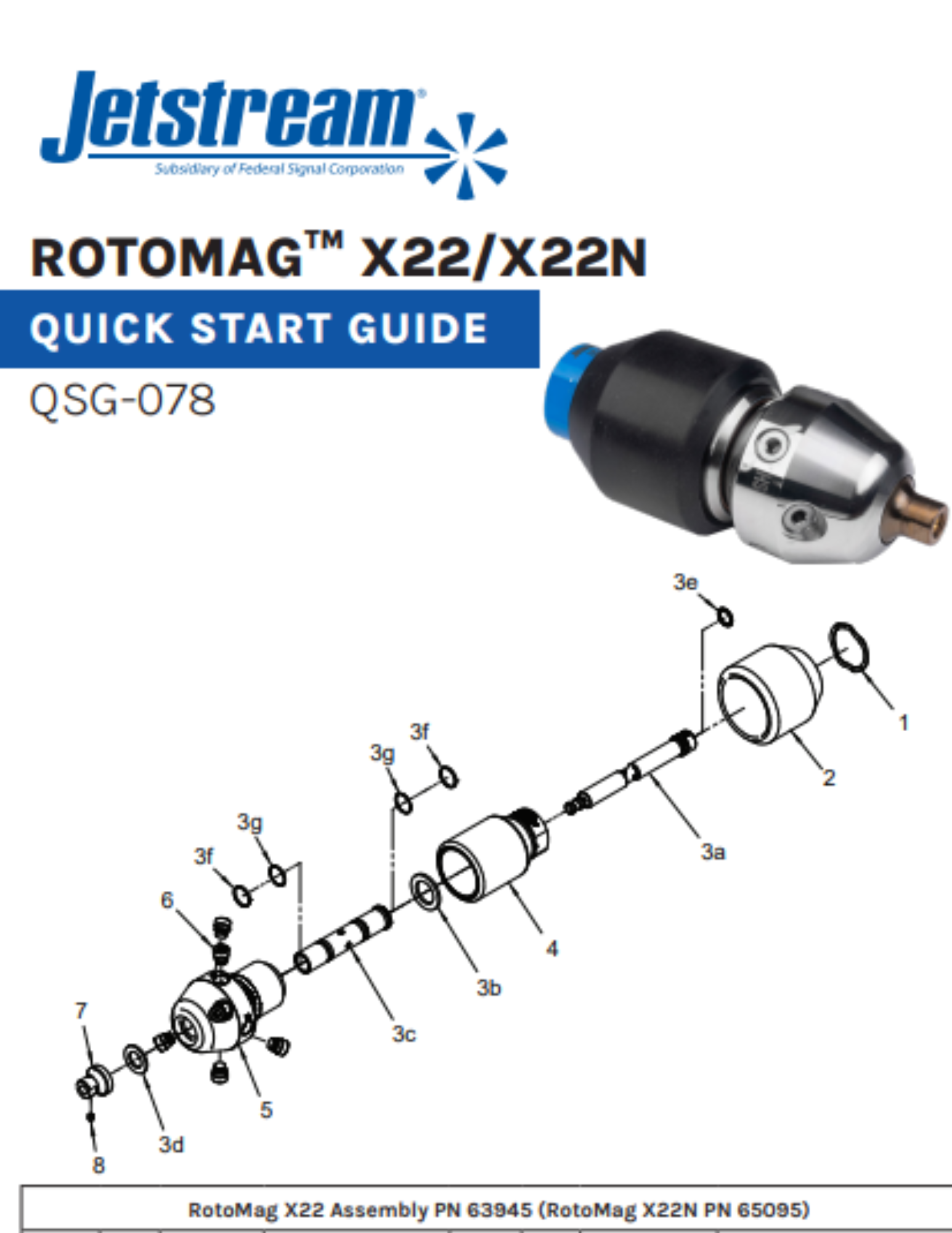

- 5 minute replacement of wear components in the field with Rebuild kits using only two standard hex wrenches.
- Oil and lubricant free.
- 8 nozzle ports with many possible configurations.

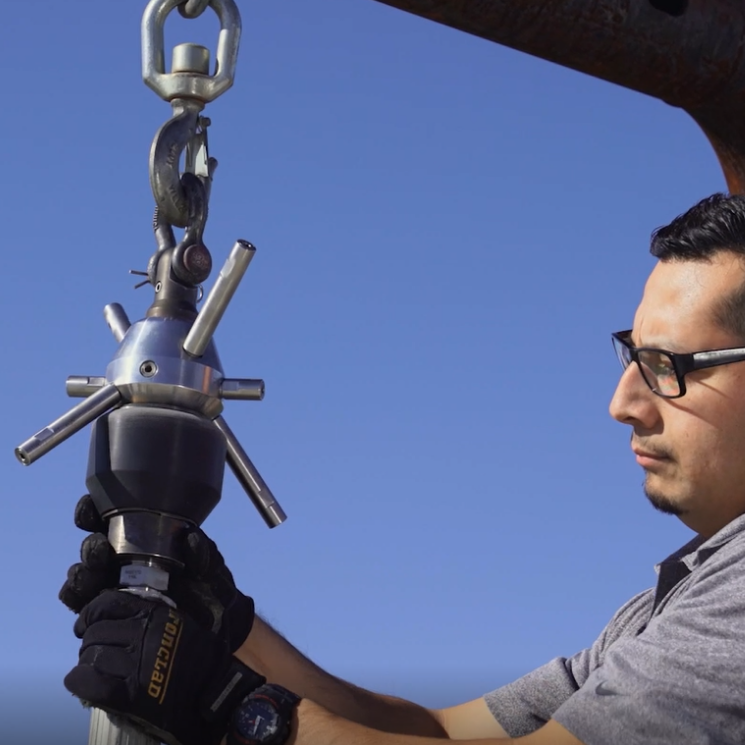

- Accessories such as tow rings, centralizers and extension arms available.
Specifications
- Maximum operating pressure 22,000 psi (1517 bar)
- Maximum flow rate 80 gpm (303 lpm)
- 3/4″ MP Female inlet connection
- Clean pipes ranging from 3.5 inches (8.89 cm) to 60 inches (152 cm) in diameter.
- Rotation speed from 50 to 300 rpm
- RotoMag™ X22 (1/2″ – 28 UNEF ports) uses Tungsten Carbide RM Series nozzles, Sapphire RMS Series nozzles, or Synthetic Diamond RMD Series nozzles
- RotoMag™ X22N (1/4″ NPT ports) uses Tungsten Carbide P4TC Series or steel JS4F or JS4FD nozzles.
- Assembled weight 6 lbs (2.7 kg)

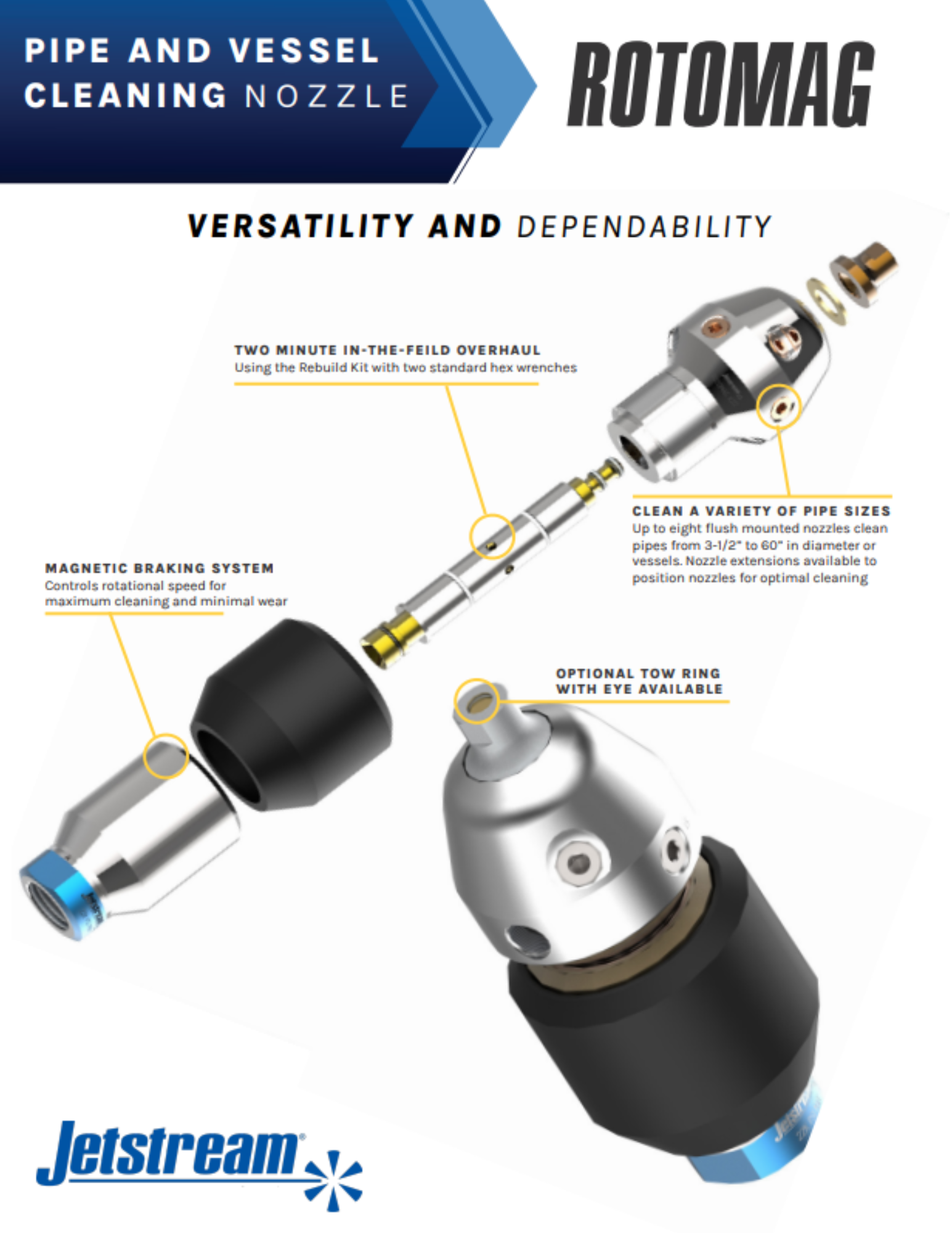

VERSATILITY AND DEPENDABILITY
The Jetstream RotoMag™ X22 and X22N are 2-D self-powered rotating tools designed for cleaning stacks, sewer lines, drains, tanks, on-line boilers, and other large diameter pipes. Spinning on a film of high pressure water using Jetstream water bearing technology, the tool has no bearings to fail or oil reservoirs to maintain, keeping service simple and fast.
Using a maintenance free magnetic braking system moderates the rotational speed of the tool, while eliminating the need for lubricating oils or friction plates for ease of use. With a total of 8 nozzle ports the RotoMag™ X22 can be configured in a variety of patterns to operate at 22,000 psi or 15,000 psi with an adapter to achieve optimum flow and rotation speed for every job.
